WW-P06 · Cast, flow-formed and steel passenger wheels

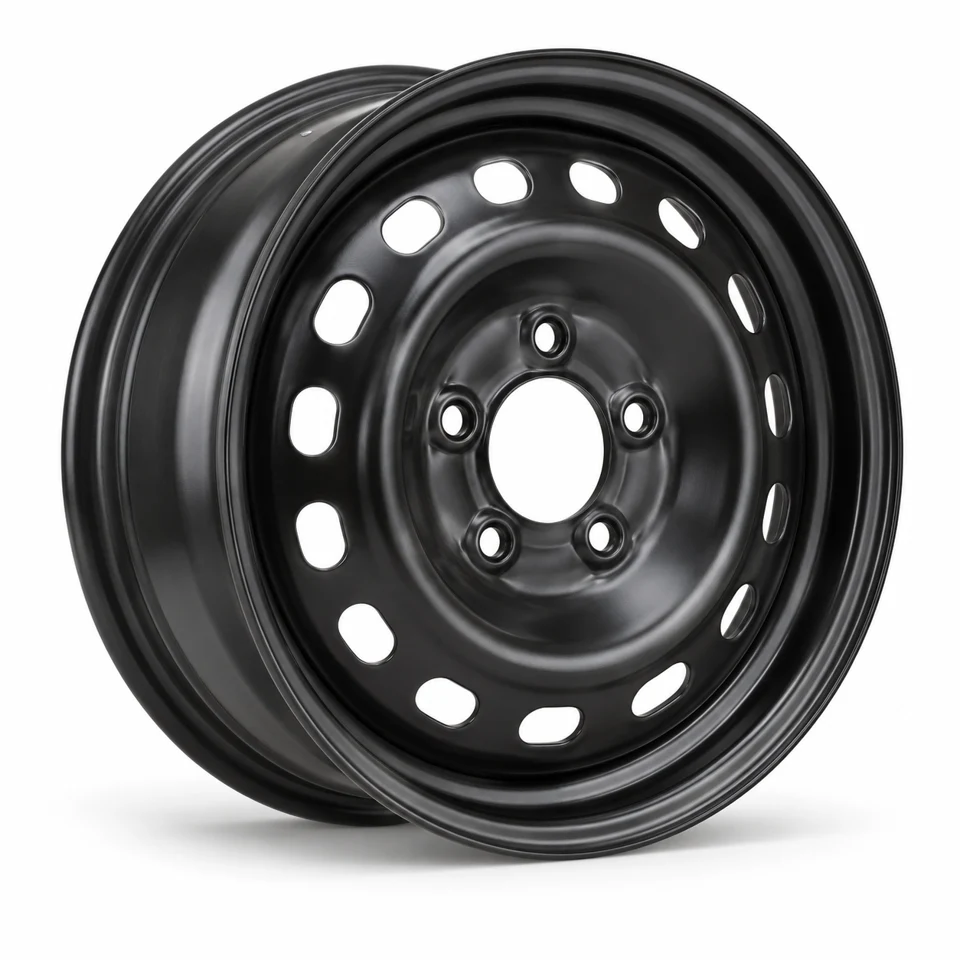

Steel Passenger Replacement Wheel
Fleet service and seasonal replacement programs for approved vehicles.
| Wheel / rim size | 16 x 6.5 in (406.4 x 165.1 mm) |
|---|---|
| Example bolt pattern | 5 x 4.500 in (5 x 114.3 mm) |
| Example offset | 1.5748 in (40 mm) |
| Center bore / load | Vehicle-specific approval |
Selection configuration; sample, load rating and fitment approval are required before order.
Construction & Material
Stamped steel disc welded to a rolled drop-center rim.
Options
Finish, bore and offset within a validated design; TPMS-compatible valve option.
Size options
15 x 6 in (381 x 152.4 mm); 16 x 6.5 in (406.4 x 165.1 mm); 17 x 7 in (431.8 x 177.8 mm)
Procurement Value
High-volume pressing and simple finishes suit repeat fleet procurement.
Mounting & Selection
Vehicle/year/trim, brake package, diameter/width, lug count/PCD, center bore, offset, load, TPMS and finish.
Standards & Qualification
FMVSS 110/120 applicability; SAE J2530 aftermarket test program. Fitment and test evidence are required for the supplied configuration.
Packing & Delivery
Actual packed dimensions, gross mass and stack limit to be confirmed. Protect rim edges and finished surfaces. Matched multi-piece components must be secured and identified together.
Model Approval
Confirm the quoted model, production drawing, load and fitment evidence before ordering. Reference specifications are not a supply guarantee.
